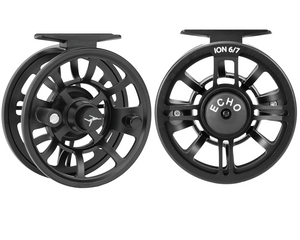

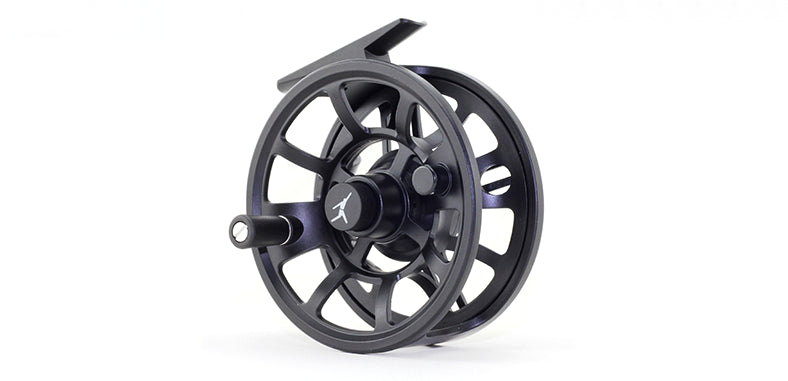

The ECHO Ion reels are the best reel we've ever seen in the sub $200 category. They're made from what we call a "hybrid" design, cast in aluminum and then machined to provide the benefits of a machined bar stock reel without the high price associated with "fully" machined reels. All Ion reels are then coated with an impact-resistant, matte black finish to provide the best-looking, longest-lasting finish. Six sizes to fit any rod, starting with the 2/3 and finishing with the 10/12, which will hold the largest single-hand or two-handed lines with plenty of backing. ECHO Ion reels have stainless steel internal components and are primarily designed for fresh water use. They are not designed for, but can handle some exposure to salt providing extra care is taken to clean and lubricate them after each day on the water. At NZ$149 retail for the three smaller reels and NZ$189 for the three larger sizes, the ION reels are a "no brainer."
For the three larger reels we offer an optional heavier drag knob made from solid brass. This knob (sold separately) adds 65gm (2.3 oz) to the reel weight, helping the reel balance with the longest two-hand rods.
Why This Reel?
Maintenance-free Rulon disc drag with low start-up resistance
Backlash-free, instant drag reaction from one-way roller clutch bearing
Positive position click drag knob
Lightweight, hybrid design balances with lighter rods
Incoming/outgoing audible click
Durable solid alloy construction
Fast line pickup large arbor spool
Reel Specifications
Reel |
Diameter |
Width |
Weight |
Line Capacity |
#2/3 |
74mm (2.9") |
23mm (.9") |
136g (4.8oz) |
WF3+75/20 |
#4/5 |
86mm (3.4") |
31mm (1.2") |
150g (5.3oz) |
WF5+150/20 |
#6/7 |
94mm (3.7") |
31mm (1.2") |
156g (5.5oz) |
WF7+150/20 |
#7/9 |
99mm (3.9") |
33mm (1.3") |
224g (7.9oz) |
WF8+200/20 |
#8/10 |
99mm (3.9") |
33mm (1.3") |
235g (8.3oz) |
WF8/9+200/20 |
#10/12 |
120mm (4.7") |
38mm (1.5") |
264g (9.3oz) |
WF9/10+250/30 |
Care & Handling
We would like your ECHO experience to be a good one and we ask that you take care of your equipment with the following regular maintenance:
Wash all components with warm freshwater after each days use in saltwater. Pay extra attention to the space where the guides meet the blank and the metal parts of the reel seat. Try to keep sand and dirt out of the ferrules. Occasionally use a few drops of any reel oil or grease on the reel seat threads to keep it operating smoothly. Paraffin wax can also be used on the ferrules if needed to ensure a proper fit.
Do not use tape on your ferrules. If you do we'll come steal all your bacon.
